The HQ-9 SAM System: A Site Analysis

INTRODUCTION

The Chinese military is currently undergoing a major renovation with the development and introduction of new weapon systems such as the Type 094 SSBN and the J-10 fighter aircraft. Part of this major facelift, aimed at making the Chinese military a more streamlined, modern, and capable force, is directed at the ground-based air defense network. Until advanced Russian-made S-300P family SAM systems were introduced in the 1990s, the primary strategic SAM system was the aging HQ-2 (CSA-1 GUIDELINE), a copy of the technologically ancient Soviet-era S-75 (SA-2 GUIDELINE). The introduction of the S-300P has provided China with a modern, robust SAM system capable of dealing with 21st century airborne threat systems, but the desire to produce a native system was still present. That system was the HQ-9.

THE HQ-9

The HQ-9 is a modern mobile strategic SAM system roughly analogous to the Russian-made S-300PMU (SA-10B GRUMBLE). The HQ-9 has a range of 100 kilometers, an increase over the S-300PMU's 90 kilometer maximum range but less than that of the S-300PMU-1's 150 kilometers. The containerized missiles are carried in groups of four on the back of wheeled TELs very similar in design to that of the S-300P's 5P85. Target prosecution is handled by the HT-233 phased-array radar system, mounted on a wheeled chassis in a configuration very similar to that employed by the S-300PMU, which mounts the 30N6 (FLAP LID) engagement radar on a MAZ-7910 chassis. The HT-233 radar is likely capable of engaging multiple targets thanks to its phased-array construction.

The similarities between the S-300PMU components and the HQ-9 components may be the result of a limited reverse-engineering effort. China had no prior experience in developing a modern, high-performance strategic SAM system, and it is likely that the S-300P was examined as either a possible starting point or at the very least a general roadmap for component design. Espionage efforts may have aided the development effort as well, as the HT-233's radar array bears some similarities to the MIM-104 PATRIOT's AN/MPQ-53 phased-array radar. Were the HQ-9 to be an amalgamation of S-300PMU and PATRIOT technology, it would have to be regarded as a very formidable weapon system, although there is no reason to doubt the system's effectiveness were this not to be the case.

Trials of the HQ-9 were conducted at the Shuangchengzi SAM test range located in north-central China.

The following image depicts the HQ-9 test facility at Shuangchengzi:


HQ-9 production appears to take place at a facility located southwest of Beijing at 39 47' 22.62" N 116 09' 28.40" E. What would appear to be a complete HQ-9 battery is located on a pad at this facility, probably undergoing system checkout and calibration before the battery is deployed to an operational site.

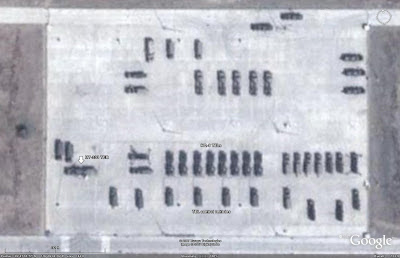

The following image depicts an HQ-9 battery undergoing probable system checkout:


HT-233 radar development may have also taken place at the Beijing facility. The facility appears to house an RCS range. The presence of an RCS range and HT-233 radar vehicles indicates that this facility may be used for radar development as well as HQ-9 production.

The following image depicts three HT-233 TERs at the Beijing facility:


A TYPICAL HQ-9 SITE

A typical HQ-9 site will consist of a raised central berm for the HT-233 engagement radar, surrounded by four prepared pads upon which the TELs will be deployed. A pad is located next to the HT-233 berm, likely housing generators or command and control facilities. A circular path surrounds the main complex, containing the TEL pads and the engagement radar position. A second raised berm is situated outside this circular path, likely intended to mount an early warning radar of some sort. The one inconsistency in identified active HQ-9 sites is the presence or lack of additional structures housing various pieces of support equipment. This includes a vehicle situated between the TELs, which probably serves as a control vehicle for two TELs in much the same way that the "Master" 5P85S TEL is used to control 5P85D "Slave" TELs in an S-300P battery. System components of an HQ-9 battery are linked via cable connections.

The following image depicts an occupied HQ-9 site outside Beijing:


HQ-9 SITE LAYOUT VS S-300P SITE LAYOUT

Identifying HQ-9 sites in imagery can be a confusing task. The system components share similarities with those of the S-300P family, and the site layout is very similar to that of the S-300P systems based in China and other nations across the globe. In order to avoid misidentification of a given site, it is important to be mindful of the identifiable differences in the layouts of HQ-9 and S-300P sites.

The first obvious difference is the presence of the control vehicle between the HQ-9 TELs. This feature is absent in an S-300P battery. It is not important, however, to go to this level of detail to differentiate between HQ-9 and S-300P facilities.

The second identifiable difference between an S-300P and an HQ-9 site is the shape of the TEL pads. The following two images depict unoccupied HQ-9 and S-300P sites located in China. Note the rectangular shaped pads provided for the HQ-9 TELs, compared to the pie-shaped pads provided for the S-300P TELs.

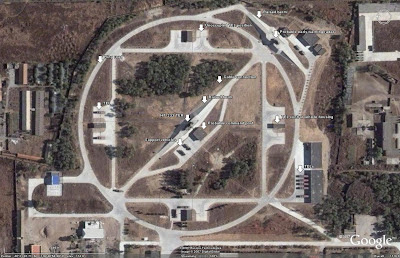

The following image depicts an unoccupied HQ-9 site:

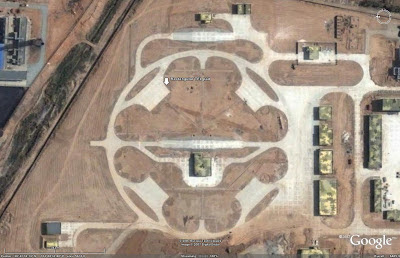

The following image depicts an unoccupied S-300P site:


Given proper attention to detail and a working knowledge of the characteristics of each SAM site, it can be seen that it is possible to differentiate between HQ-9 and S-300P facilities without having to discern differences between individual system components. Furthermore, it has been demonstrated that it is possible to effectively identify unoccupied facilities with a high degree of precision.

SYSTEM COVERAGE

The HQ-9's 100 kilometer range and multiple target engagement capability means that fewer SAM sites are now required to defend a given portion of airspace.

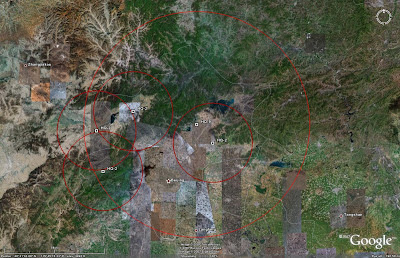

The following image depicts the coverage provided by an HQ-9 site situated north of Beijing. Note the much smaller coverage areas provided by the four HQ-2 sites in the same region.


CURRENT USERS

The only current user of the HQ-9 strategic SAM system is China. There are currently three HQ-9 sites located at the following coordinates:

34 37' 14.21" N 108 42' 23.62" E (Active)
40 21' 20.79" N 116 41' 01.81" E (Active)
36 32' 14.19" N 104 08' 34.30" E (Unoccupied)

SOURCES

-Jane's Land Based Air Defense 2002-03
-All satellite imagery provided courtesy of Google Earth
