Thursday, July 26, 2007

Identifying Tactical SAM Systems

INTRODUCTION

Identifying tactical SAM systems in overhead imagery can be a very tedious, error-filled process. The problem stems from two key issues: resolution and component size. The resolution of the imagery being examined can often preclude accurate visual identification of a tactical SAM ssytem. Oftentimes these systems are deployed in the field, and as they do not use common site configurations which are easily identifiable, their components must be identified in order to accurately determine the system type. The size of the individual system components also presents a problem for the analyst. Tactical SAM system components are, for the most part, much smaller than their strategic counterparts. Also, when missiles are not uploaded, TELs and TELARs can resemble tanks or other common vehicles, making their identification very problematic unless the imagery is of sufficient quality to discern launch rails and other features of the system components.

This article will focus on four common Russian-made tactical SAM systems. Relevant system components will be detailed, with a focus on system recognition.

THE SA-4

The Antey 2K11 Krug (SA-4 GANEF) tactical SAM system is one of the easier systems to positively identify. This is thanks in no small part to the very large missiles employed by the system. There are two key system components, the 2P24 TEL and the 1S32 (PAT HAND) engagement radar.

The following image depicts an active, field deployed 2K11 battery in Azerbaijan. Three 2P24 TELs can be identified. Take note of the readily identifiable 3M8 missiles, two of which are fitted to each TEL, identifying this as a 2K11 battery. The presence of the three TELs enables the central vehicle to be identified as a 1S32 radar. The 2P24 TELs do not contain on-board engagement radars, necesitating a 1S32 to be located nearby in order for the battery to prosecute an engagement. In this case, the 1S32 does not need to be identified using any major distinguishing features. This is a common theme in tactical SAM system analysis: identification by proximity.

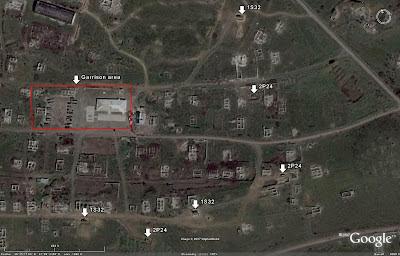

The following image depicts another 2K11 facility in Azerbaijan. In this instance, a garrison area is visible. SAM garrisons are common locations to find tactical SAM equipment which is not field deployed. This site is unusual, however, insofar as there are three TELs deployed around the facility. In a further deviation from the norm, each 2P24 is located adjacent to a separate 1S32. Normal operations dictate the use of one 1S32 to control a handful of TELs; in this case, Azerbaijan has given the erstwhile SAM site the capability to engage a total of three simultaneous targets, as each 1S32 can only prosecute a single target at a time.


THE SA-6

The Tikhomirov Instrument Research Institute's 2K12 Kub (SA-6 GAINFUL) is one of the most widely used tactical SAM systems in the world. Identification of the 2K12 can be difficult due to the smaller, less easily identifiable 3M9 missiles. Important system components are the 2P25 TEL armed with three 3M9s, and the 1S91 (STRAIGHT FLUSH) radar.

The following image depicts an active, field deployed 2K12 battery in Syria. The 2K12 is a mobile, tactical SAM system, but many nations employ the system at prepared site locations as seen here. The 2P25 TELs are identifiable thanks to the visible loadout of 3M9 missiles. If the northernmost TEL is zoomed in on using Google Earth, separate missiles can even be discerned thanks to the resolution of the imagery. The 1S91 is identifiable thanks to a standard feature of the system: cable connections between the individual TELs and the engagement radar. In this case, a well-camoflaged 1S91 is clearly located atop the berm in the center of the site. The radar antenna can even be partially discerned through examination of the visible shadows.


The SA-11

Tikhomirov's follow on to the 2K12 is the 9K37 Buk (SA-11 GADFLY) SAM system employing the 9M38 missile. Key system components are the four-rail 9A310 TELAR fitted with the system's 9S35 (FIRE DOME) engagement radar, the 9A39 loader/launcher vehicle fitted with rails for eight missiles, and the 9S18M1 (SNOW DRIFT) EW radar.

THe following image depicts 9K37 components located in a garrison in Belarus. Take note of the three 9A310 TELARs. Note the visible fitting for the 9S35 radar at the front of the TELAR. This allows the 9A310 to be identified even if missiles are not fitted. Concurrently, it allows for differentiation between the 9A310 and the 9A39, as the 9A39 lacks the 9S35 installation.


The components depicted above are located at a large garrison in Baranovichi, Belarus. Other SAM system components are visible nearby, such as S-300P TELs. The following image depicts a dedicated 9K37 garrison located in Russia:


Many of the previous garrison's 9K37 components are field deployed nearby, possibly as part of a routine air defense exercise, and are visible in the image depicted below:


THE SA-12

Antey's S-300V (SA-12A/B GLADIATOR/GIANT)is the most advanced tactical SAM system in the world, conceived to provide Soviet and Russian army units and facilities with umbrella air defense against airborne and missile threats. Many of the system components are easily identifiable thanks to their unique configurations. Key system components are the 9A83 TELAR with four launch tubes for 9M83 anti-aircraft missiles, the 9A82 TELAR with two launch tubes for 9M82 ATBMs, the 9S32 (GRILL PAN) engagement radar, the 9S19 (HIGH SCREEN) sector scanning radar used for ATBM functions, and the 9S15 (BILL BOARD) EW radar.

The following image depicts an S-300V garrison in Birobidzhan, Russia. First, take note of the 9A83 TELAR in the probable system checkout area. Note the large mast antenna fitted to the front of the TELAR. This mast antenna, when elevated, allows the TELAR to be positively identified as a 9A83 and not a 9A82, regardless of whether missile canisters are fitted or not. The 9A82 by comparison features an antenna fairing that extends forward of the operator's cabin but does not elevate. 9S19 and 9S32 radars are also visible in their stowed for storage or transportation configuration. The radar arrays themselves are visible as white fixtures, with the 9S19 having a much larger, rectangular array compared to the 9S32's smaller, more circular array.

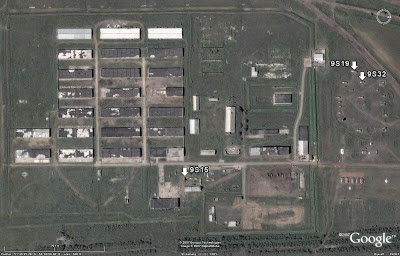

Another S-300V garrison is visible at Orenberg, Russia. Many system components can be seen field deployed to the north of the main garrison facility.

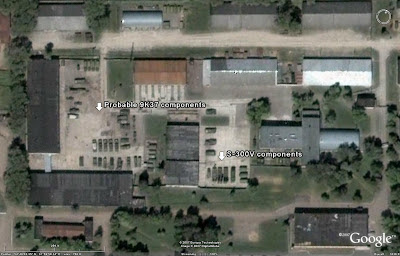

S-300V components are also visible at a possible 9K37 garrison in Smolensk, Russia:


Adjacent to the Birobidzhan S-300V garrison is what would appear to be a dedicated ATBM site. Note the dual missile canisters on the three visible TELARs, identifying them as 9A82 ATBM TELARs. The 9S32 engagement radar is located in close proximity to the TELARs, and is shown in deployed mode with the radar array raised for operation. An antenna mast is visible at the rear of the vehicle, identifying it as a 9S32 and not a 9S19. 9S15 and 9S19 radars round out the battery.


SOURCES

All satellite imagery provided courtesy of Google Earth.

Sunday, July 22, 2007

The S-200 SAM System: A Site Analysis

INTRODUCTION

The S-200 (SA-5 GAMMON) SAM system is a long-range air defense system designed to defend large areas against all manner of airborne targets, including high-speed and high-altitude aircraft. The S-200 was originally conceived in part to defend against the expected overflights by Lockheed SR-71 Blackbird reconnaissance aircraft, although no such overflights ever took place due to a political restriction of manned overflights of the USSR in the wake of the Francis Gary Powers shootdown. The S-200 entered operational service in 1967 and has remained on combat duty in various nations worldwide ever since.

In a little known role, the S-200 was also employed as a national-level ABM system for a time. More information on this concept can be found here: LINK The same article also contains information regarding a prior use of the Western SA-5 designator.

THE SA-5

The S-200 SAM system is a long-range strategic SAM system. The SARH-guided two-stage 5V21 and 5V28 missiles have a 220 kg HE fragmentation warhead. The 5V21 ad 5V28 differ from previous Fakel-designed air defense missiles insofar as their first stage is not a jetissonable booster stage, but rather four strap-on rocket motors. The missiles themselves are very large, with lengths of 10.5 meters for the 5V21 and 10.8 meters for the 5V28. Ranges vary from variant to variant, with a maximum of between 150 and 300 kilometers. Minimum ranges are between 7 and 17 kilometers, depending on the variant. Minimum altitude for all variants is 300 meters, with a maximum altitude of between 20,000 and 40,000 meters, depending on the variant. Target engagement functions are handled by the 5N62 (SQUARE PAIR) radar set, an H band system with a range of 270 kilometers, and a cpaability to engage a single target at a time.

A TYPICAL SA-5 SITE

CIA Intelligence Memorandum 69-15, The Soviet SA-5 Deployment Program, provides us with the following descriptions of active S-200 site configurations:


A typical S-200 site will contain between two and five launch areas, each containing launch pads for six 5P72 launch rails. The radar area will contain a single 5N62 radar for each launch area present in the site. This permits each site to engage multiple targets, reducing the negative impact of the 5N62's single target engagement capability. The image below depicts a typical active S-200 site located in Libya. Relevant areas are annotated.


The following image depicts the Libyan site's radar area. Note the placement of the two 5N62 radars, and the location of the control bunker housing the site's command and control section.


The launch area is detailed below. Launch areas vary in arrangement from nation to nation, but for the most part display a spade shape as seen here. It is common for S-200 sites to feature revetments for the launch rails, and individual environmental shelters to store the 5P72 launch rails during periods of maintenance or inactivity. Each launch area is controlled by crews in a centrally located bunker. Note the cable connections visible between the control bunker and the launch rails.


As witnessed in the imagery provided above, S-200 sites are rather large and expansive. Due to the large footprint of an S-200 site and the plethora of associated structures, inactive S-200 sites are relatively easy to identify.

The following image depicts an inactive S-200 site in Belarus:


EXAMPLES OF COMMON SITE CONFIGURATIONS

The following images depict the most common S-200 site layouts. Most S-200 sites feature either two or three launch areas.

The following image depicts an active S-200 site in Kazakhstan displaying the two launch site configuration. While there are only two missiles visible on launch rails in the eastern launch position, there are two 5N62 radars visible, implying that the entire site is still active.


The following image depicts an active S-200 site in the Ukraine displaying the three launch site configuration. Only the southernmost launch area appears to be active, as the launch rails appear to have been removed from the other two sites.


Due to the expansive nature of an S-200 complex, S-200 sites can be identified in low-resolution imagery. While this does not provide any indication as to the site's operational status, it does provide the analyst with a location to file away for future observation should coverages be updated.

The following image depicts a Russian S-200 site captured in low-resolution imagery. This is one of two identified S-200 sites containing five launch areas.


NON-STANDARD SA-5 SITES

North Korea and Iran have adopted unusual deployment strategies for their S-200 batteries for various reasons.

North Korean S-200 batteries are deployed in a fashion designed to increase their survivability. As seen previously in examining a North Korean S-125 site, the DPRK chooses to use a series of bunkers to protect the system components. There are individual hardened shelters visible for each 5P72 launch rail, as well as subsurface housings to protect the 5N62 radars when not in use. Two other subsurface bunkers are also visible, implying that the site may contain a total of four 5N62 radars.

The following annotated image depicts North Korea's western S-200 site:


Iranian S-200 batteries, in comparison to other users, are very unusual in their deployment. Iran deploys a single 5N62 radar with two 5P72 launch rails at each location. This is highly irregular, perhaps implying that Iran did not purchase a full complement of missiles or launch rails. It is also possible that, given the capability of the S-200 system, Iran views them as probable targets in any sort of military conflict and as such does not see the need to deploy a significant number of components at each site, choosing instead to hold them in reserve. As the 5N62 can only engage a single target at a time anyway, this would seem to be a sensible strategy.

The following annotated image depicts an Iranian S-200 site located on the grounds of Hamadan AB:


SYSTEM COVERAGE

The S-200 SAM system possesses a very long range, which will only be surpassed once the 400-kilometer S-400 enters full operational service. To that end, the S-200 is capable of providing air defense over large amounts of territory. It should be noted that the long-range S-200 is commonly featured as part of an integrated network which incorporates shorter-range systems such as the S-75, which also helps to cover close-in targets who close within the rather long minimum range of the system. As the S-200 is not intended to counter close-in targets, this should not be considered a design flaw of the system.

The following image depicts the coverage provided by identified active S-200 sites in Iran:


CIA IM 69-15 provides the following conceptual look at theorized S-200 deployment in the former USSR, based on identified active and in-construction S-200 sites as of 15 June 1969:


CURRENT USERS

The nations listed below have been identified through analysis of Google Earth imagery as being current users of the S-200 SAM system. The number in parentheses following the nation's name is the number of occupied sites currently visible in Google Earth, followed by the number of currently unoccupied sites in that nation.

Iran (6/0), Kazakhstan (2/2), Libya (4/2), North Korea (1/0), Syria (2/1), Turkmenistan (1/0), Ukraine (1/2)

FORMER USERS

The nations listed below have been identified through analysis of Google Earth imagery as having been former users of the S-200 SAM system. The number in parentheses following the nation's name is the number of unoccupied sites currently visible in Google Earth, not including those currently occupied by other SAM systems.

Belarus (1), Czech Republic (2), Estonia (1), Germany (4), Hungary (1), Latvia (1), Lithuania (1), Russia (19)

POSSIBLE USERS

The nations listed below possess identified S-200 site locations in low-resolution imagery. As the resolution precludes identification of the sites as active or inactive, they are listed here as possible users. Some of the nations are already mentioned above, indicating that they possess active or inactive S-200 sites in various resolutions. The number in parentheses following the nation's name is the number of low-resolution sites currently visible in Google Earth.

Azerbaijan (2), Belarus (3), Bulgaria (1), Estonia (3), Latvia (4), Libya (2), Lithuania (1), Moldova (1), North Korea (1), Poland (1), Russia (48), Syria (3), Ukraine (10)

SOURCES

-Jane's Land Based Air Defense 2002-03
-All satellite imagery provided courtesy of Google Earth
-The CIA FOIA website at http://foia.cia.gov provided the documents shown and referenced above

Saturday, July 21, 2007

The S-125 SAM System: A Site Analysis

INTRODUCTION

The S-125 (SA-3 GOA) SAM system was developed to provide additional low-altitude coverage in areas already defended by S-25 and S-75 SAM systems. S-125 SAM systems were also deployed in areas identified by the Soviet Military as potential enemy low-altitude ingress routes en route to high-priority targets. Interestingly, the S-125 began life as the M-1 (SA-N-1 GOA) naval SAM system, and was chosen for land-based use early in development. Many S-125 SAM systems remain in operation to this day, and there are numerous odifications available. The most current modification is the Pechora-2M mobile variant.

THE SA-3

The S-125 SAM system is a two-stage strategic SAM system. Two missiles are employed, the 5V24 and the 5V27. Both weapons are command guided. The 5V24 missiles possess a 60 kilogram HE fragmentation warhead, and have a range envelope of between 4 and 15 kilometers, with a reach of between 100 and 10,000 meters in altitude. The 5V27 missiles possess an 70 kilogram HE fragmentation warhead, and have ranges between 4 and 25 kilometers with a reach of between 20 and 18,000 meters, depending on the specific variant. The 5V27 can be identified by the addition of two braking fins on the booster section. Upgraded missiles used in Pechora-2 and Pechora-2M systems have a maximum range of 38 kilometers. The I-band RSN-125 (LOW BLOW) radar handles target engagement functions, with a range of 110 kilometers. The RSN-125 has the capability to track 6 targets simultaneously, with the ability to engage a single target at a time.

A TYPICAL SA-3 SITE

A typical S-125 SAM site consists of three or four launch positions arranged in various patterns around a central radar area. Two rail 5P71 or four rail 5P73 launchers are employed. 5V24 missiles are 5.89 meters in length, and 5V27 missiles are 6.09 meters in length, although the difference may not be discernable in overhead imagery. Missile length is sometimes not an effective indicator to use when identifying an S-125 SAM site as the missile rails are often elevated. The launch rails measure approximately 8 meters in length. There is a visible counterbalance and hinge assembly that extends approximately 3.7 meters behind the missiles when they are fitted to the launch rails. This is a convenient feature for identifying an actual launch position as opposed to a missile reload vehicle, which mounts two missiles. The following image depicts a typical three-launcher S-125 site in Syria. Major components and features are labeled.


CIA NIE 11-3-62 provides us with the following description of a typical S-125 site:


EXAMPLES OF COMMON SITE CONFIGURATIONS

The following images depict the four most common S-125 site layouts. The first S-125 site configuration to be examined consists of three launch positions arrayed in a triangular fashion around the RSN-125 radar. The following site in Syria is an example of such a configuration, as is the annotated example shown above:


Some S-125 sites feature three launchers but four prepared launch positions. The following S-125 site in Libya is an example:


Some S-125 sites feature four launch positions arranged in a parallelogram-shaped configuration around the RSN-125 radar. The S-125 site detailed in the CIA document shown above is an example of such a configuration, as is the following site in the Ukraine:


The final common S-125 site configuration features four launch rails positioned in a square pattern around the central RSN-125 radar. The following site in the Ukraine is an example of such a configuration:


NON-STANDARD SA-3 SITES

Some users have placed S-125 systems in sites formerly constructed for and occupied by S-75 SAM systems. This illustrates the need to not only identify a site's configuration, but also the components present as well. The following S-125 battery is located in a former S-75 SAM site in Egypt:


Some S-125-occupied S-75 sites found in Serbia and India are distinctive insofar as they lack revetments for the radar and launch rails. The following S-75 battery is located on a former S-75 site in Serbia:


Some Belarussian S-125 sites are located on prepared sites intended to house S-300P SAM systems. It is likely that these sites were constructed on the locations of former S-125 sites, and that the S-125 systems were retained pending availability of the S-300P systems. The following site is an example of such a Belarussian S-125 deployment:


Many North Korean SAM sites use unorthodox layouts to increase their survivability. The S-125 is no exception. The site depicted below illustrates North Korean survivability efforts, including placing the launchers and the RSN-125 radar inside of bunkers to protect them when they are not in use.


Finally, some S-125 users deploy their systems in seemingly random manner dictated by either terrain constraints or potential threat ingress routes. There are numerous other iterations of the S-125 site; the important factor in identifying the site is to identify the system components. Fortunately, the launch rails themselves, either loaded or unloaded, are readily identifiable in high-resolution imagery.

The following S-125 site in Algeria is an example of a "random" site configuration, in this case dictated by the limited space available for the site as it is located in an urban area:


SYSTEM COVERAGE

Given the relatively short range of the S-125 SAM system, most nations commonly employ them as short-range systems complementing longer-range systems such as the S-75 that the system was originally designed to complement.

The following image depicts the coverage provided by identified active S-125 sites (blue) and S-75 sites (red) around the metropolitan areas of northeastern Egypt:


Other nations, such as Eritrea, Peru, and Zambia, employ the S-125 as their primary air defense system, positioning their launchers around key areas. In these cases it is likely that interceptor aircraft would serve as the primary means of air defense, as the SAM network is too short-ranged and widespread to provide accurate coverage.

The following image depicts S-125 coverage in Eritrea:



CURRENT USERS

The nations listed below have been identified through analysis of Google Earth imagery as being current users of the S-125 SAM system. The number in parentheses following the nation's name is the number of occupied sites currently visible in Google Earth, followed by the number of currently unoccupied sites in that nation.

Algeria (4/0), Angola (7/0), Armenia (2/1), Azerbaijan (4/0), Belarus (4/0), Bulgaria (4/0), Cuba (4/0), Egypt (43/11), Eritrea (3/1), Ethiopia (4/1), Georgia (1/1), India (23/9), Kazakhstan (1/0), Kyrgyzstan (2/0), Libya (10/2), Mozambique (3/0), North Korea (1/0), Peru (7/8), Poland (4/6), Serbia and Montenegro (3/2), Syria (26/4), Tajikistan (2/0), Turkmenistan (3/0), Ukraine (2/2), Uzbekistan (3/0), Vietnam (7/3), Yemen (1/0), Zambia (2/0)

FORMER USERS

The nations listed below have been identified through analysis of Google Earth imagery as having been former users of the S-125 SAM system. The number in parentheses following the nation's name is the number of unoccupied sites currently visible in Google Earth, not including those currently occupied by other SAM systems.

Czech Republic (8), Hungary (8), Iraq (14), Romania (1), Slovakia (4)

SOURCES

-Jane's Land Based Air Defense 2002-03
-Fakel's Missiles, by Vladimir Korovin
-All satellite imagery provided courtesy of Google Earth
-The CIA FOIA website at http://foia.cia.gov provided the documents shown and referenced above

-Site measurements were acquired using Google Earth and as such may not be 100% accurate

Tuesday, July 17, 2007

The S-75 SAM System: A Site Analysis

INTRODUCTION

The S-75 (SA-2 GUIDLEINE) SAM system was developed in the USSR to provide a semi-mobile, widely deployable SAM system to complement the S-25 system in place around Moscow. Deploying the S-25 nationwide would have proved to be cost-prohibitive, so a smaller, more compact, and therefore cheaper SAM system was needed for air defense across the USSR and the Warsaw Pact member states. The S-75 remains in widespread use to this day, a testament to the robust design and capability of this Cold-War era SAM system. Chinese-produced derivatives share the same deployment layouts, a testament to their S-75 heritage, and are designated HQ-2.

THE SA-2

The S-75 SAM system is a two-stage strategic SAM system. The command-guided V-750 missiles have a 195 kg HE fragmentation warhead. Ranges vary from variant to variant, with a maximum of between 30 and 67 kilometers. Minimum ranges are as little as 6 kilometers. Altitudes range from a minimum of as little as 100 meters to a maximum of 30,000 meters, depending on the variant. Target engagement functions are handled by the RSN-75 (FAN SONG) radar set, an E or G band system with a range of up to 145 kilometers, depending on the specific model, and a cpaability to engage a single target at a time.

In an interesting footnote, the initial designator for the RSN-75 radar in the West was FRUIT SET, as evidenced by declassified CIA documentation from 1961 (NIE 11-5-6, available online at the CIA's FOIA website). No reason has yet been discerned for the change to FAN SONG.

A TYPICAL SA-2 SITE

S-75 SAM sites are relatively easy to identify on high-resolution imagery. S-75 components are typically arranged in a circular pattern. The RSN-75 engagement radar is positioned in the center of the site, typically atop a large service and command bunker, and there are six launch rails for the V-750 missiles positioned in a circular pattern facing outward around the radar position. The V-750 missiles are between 10.6 and 11.2 meters in length, depending on the variant. The launch rails measure between 10 and 10.5 meters in length in overhead imagery, depending on the resolution. S-75 sites tend to have a diameter of approximately 0.2 kilometers, although diameters of 0.16 and 0.23 kilometers have also been noted. Deployment in crowded urban areas or in some terrain can necessitate a closer or wider spacing of the site components. The V-750 launch rails are housed in circular revetments between 20 and 25 meters across, with HQ-2 sites having revetments up to 30 meters across.

The following image depicts a typical S-75 site in Yemen. Major components are labeled, including a TET used to transport missile reloads from the storage area to the launch rails.


The common practice of placing the launch rails in sturdy revetments enables inactive S-75 sites to still be identifiable, even though they may have been unused for quite some time.

The following image depicts an inactive, overgrown S-75 site in Germany:


EXAMPLES OF COMMON SITE CONFIGURATIONS

The following images depict the most common S-75/HQ-2 site layouts.

The S-75 site depicted below is a Bulgarian site displaying the classic circular layout:


Some S-75 sites use a compressed layout, positioning the launch revetments far closer to the RSN-75 radar position than is normal. This is commonly seen in Egyptian S-75 sites, such as the one seen below:


Some S-75 or HQ-2 sites use a semi-circle layout, as depicted by the HQ-2 site near Shanghai seen below:


Not all S-75 or HQ-2 sites feature a radar bunker or even revetments. In this case the site must be identified by the number of launchers, the size of the missiles, and any identifiable support equipment. The site depicted below is such an example, found in Libya. Note that sand berms have been constructed around some of the components, but these are a far cry from the sturdy revetments found at prepared site locations.


NON-STANDARD SA-2 SITES

S-75 and HQ-2 users have developed some unorthodox site layouts for a variety of reasons. Regardless of the layout, two elements will always be present at an S-75 or HQ-2 launch site: the engagement radar, and the missile launch rails themselves. The most common unorthodox site layouts will be discussed here.

Vietnam has created an unorthodox site layout for its S-75 batteries. The revised layout consists of a single RSN-75 engagement radar surrounded by four, rather than six, launch rails, arranged in various patterns. The reasoning behind the revised layout is unclear, but there are a few logical reasons which may be behind the unusual deployment. First, Vietnam may simply be taking launchers and missiles out of service to save maintenance and upkeep costs. Given that the RSN-75 can only prosecute one engagement at a time, reducing the number of launchers at a given site may be strategically acceptable. Secondly, Vietnam may be limiting the number of in-service missiles to reduce the wear and tear on important defensive assets, enabling more missiles to be kept in reserve storage for wartime use. Thirdly, as the revised sites do not maintain the 360-degree layout with respect to the launch rails, reducing the number of rails at certain sites may be indicative of Vietnam's strategic thinking insofar as potential threat ingress routes are concerned. All of Vietnam's S-75 sites feature this layout save one, but even that site is only configured with four launch rails.

The following image depicts a Vietnamese S-75 site near Nha Trang AB using the aforementioned unorthodox equipment configuration:


The Chinese military has been forced to employ an unorthodox HQ-2 site layout due to force modernization issues. A number of HQ-2 sites are apparently being converted to S-300P or HQ-9 sites. In order to mitigate the potential loss of capability while a site is being modernized, the HQ-2 battery is simply relocated off-site to a nearby area.

The following image depicts a Chinese HQ-2 site being modernized to field the S-300P or HQ-9 strategic SAM system. Note the HQ-2 battery which has been repositioned to the northwest of the site being refurbished. In this case, the battery is kept at half-strength.


Once site modernization is complete, some Chinese S-300P or HQ-9 sites appear to retain the HQ-2 battery, which has been relocated back onto the "new" site. This ensures that local air defenses will not be degraded while S-300P or HQ-9 components are procured or produced in sufficient numbers to take up residence at the relevant site or sites.

The following image depicts a recently modernized SAM site configured for the S-300P or HQ-9 system, clearly illustrating the presence of an HQ-2 battery:


SYSTEM COVERAGE

While the S-75 does not possess the sheer range of more modern strategic SAM systems such as the S-200 or the S-300P series, it is still capable of fulfilling a prominent role in the air defense network of a given nation.

The following image depicts the coverage provided by identified active S-75 sites in Syria:


CURRENT USERS

The nations listed below have been identified through analysis of Google Earth imagery as being current users of the S-75 or HQ-2 SAM system. The number in parentheses following the nation's name is the number of occupied sites currently visible in Google Earth, followed by the number of currently unoccupied sites in that nation.

Albania (2/0), Angola (2/1), Azerbaijan (1/1), Bulgaria (3/0), China (35/7, HQ-2), Cuba (2/0), Egypt (37/100), Ethiopia (6/1), Iran (3/9, HQ-2), Kazakhstan (3/6), Kyrgyzstan (3/0), Libya (8/4), North Korea (15/5), Pakistan (1/0, HQ-2), Syria (24/18), Turkmenistan (2/15), Uzbekistan (1/0), Vietnam (9/1), Yemen (11/1)

FORMER USERS

The nations listed below have been identified through analysis of Google Earth imagery as having been former users of the S-75 or HQ-2 SAM system. The number in parentheses following the nation's name is the number of unoccupied sites currently visible in Google Earth, not including those currently occupied by other SAM systems.

Belarus (1), Czech Republic (1), Estonia (1), Germany (6), Hungary (4), India (2), Iraq (17), Latvia (1), Lithuania (2), Mozambique (1), Poland (9), Romania (3), Russia (9), Slovakia (2), Somalia (2), Ukraine (6)

SOURCES

-Jane's Land Based Air Defense 2002-03
-All satellite imagery provided courtesy of Google Earth

-Site measurements were acquired using Google Earth and as such may not be 100% accurate
-For more information on Pakistan's air defense situation, reference the following article at this site: Modernizing Pakistani Air Defenses

Thursday, July 12, 2007

The S-25 SAM System: A Site Analysis

INTRODUCTION

Locating strategic SAM sites in Google Earth imagery is a time-consuming process. Each panel of high-resolution imagery must be scrutinized and examined in order to locate and identify various site configurations and missile systems. In order to ensure success, the analyst must first know what to look for. This is the first article in a multi-part series which will detail the layout and key features of various identifiable strategic SAM sites found worldwide. Armed with this knowledge, the analyst will be able to positively identify such facilities with greater ease and accuracy.

THE SA-1

The first operational strategic SAM system in the world was the Russian S-25 (SA-1 GUILD). The S-25 was a rail-launched system emplaced at fixed launch sites. The command-guided V-300 missile had a maximum range of 45 kilometers, and a maximum reach of between 4,000 and 14,000 meters in altitude. A 250kg HE warhead was fitted. The E/F band R-113 (GAGE) radar provided target acquisition to a range of 300 kilometers. The E/F band B-200 (YO YO) radar performed target engagement functions, with a maximum range of 150 kilometers and the ability to track between 24 and 30 targets per radar. Each B-200 radar could prosecute one engagement at a time.

SA-1 DEPLOYMENT

The S-25 system was conceived to provide air defense of the skies over Moscow. The system was intended to provide defense against an incoming bomber force of 1,000 aircraft. S-25 sites were located in two rings around Moscow, with radii 45 and 80 kilometers from the center of the city.

The image below depicts the locations of the 34 outer ring sites and the 22 inner ring sites:


Initial CIA projections, shown in the image below taken from the declassified NIE 11-5-57, were not that far from the mark:


A TYPICAL SA-1 SITE

CIA NIE 11-5-57 provides us with the following description of an active S-25 site:


The overhead image below depicts a typical S-25 site as it exists today, with the relevant areas and structures annotated:


This site is a rarity insofar as it has remained mostly intact, allowing the site layout to be studied using present-day imagery. The S-25 sites all followed the same standard layout seen above. The radar position, seen below, was located approximately 1.5 kilometers behind the launch area. Two B-200 radars were positioned in the forward area of the bunker, which housed the command and control section and the crews who controlled the site.


The launch area, seen below, contained the individual launch positions. Each launch area contained three V-300 fixed launch assemblies. Each S-25 site contained a number of launch areas. The interlocking nature of the launch areas gave the S-25 sites their distinctive rectangular herringbone appearance.


Adjacent facilities, as seen in the following image, included housing areas for assigned personnel, and support facilities for maintaining the site itself:


All of the site areas were connected using concrete roads. As these roads still exist carving their tell-tale herringbone path through the forested areas outside Moscow, former S-25 sites are relatively easy to locate and identify.

The expansive nature of the S-25 sites also allows them to be easily identified using low-resolution imagery, as evidenced by the image below:


CURRENT STATUS

As the S-25 has since been replaced by different variants of the S-300P family, there are no active sites located in Russia. The sites themselves do still exist for the most part, and many have been reused for other purposes.

The S-25 site seen below has been reused as a residential area, a relatively simple proposition thanks to the aforementioned interconnecing network of concrete roads found throughout the site:


Alternatively, many S-25 sites have been reused by the Russian defense establishment. Quite a few sites, including the site shown above, feature active S-300P SAM batteries. Other sites have formed the basis of the sites for the exoatmospheric component of Moscow's ABM network over the years. For more information and descriptions of these facilities, reference the relevant article found at this site.

SOURCES

-Satellite imagery is provided courtesy of Google Earth
-The CIA FOIA website at http://foia.cia.gov provided the documents shown and referenced above
-Jane's Land Based Air Defence provided technical specifications
